Loading Dock Installation 101: Designing for Maximum Throughput
Introduction to Waterfront Commercial Docks
Commercial dock installation is the specialized marine construction process of engineering, building, and installing high-capacity permanent or floating waterfront structures designed to handle heavy vessel traffic, cargo transfer, and commercial marine operations.
At Pearce Marine Construction, we deliver heavy-duty commercial dock installation engineered specifically for commercial property owners across Nassau and Suffolk Counties.

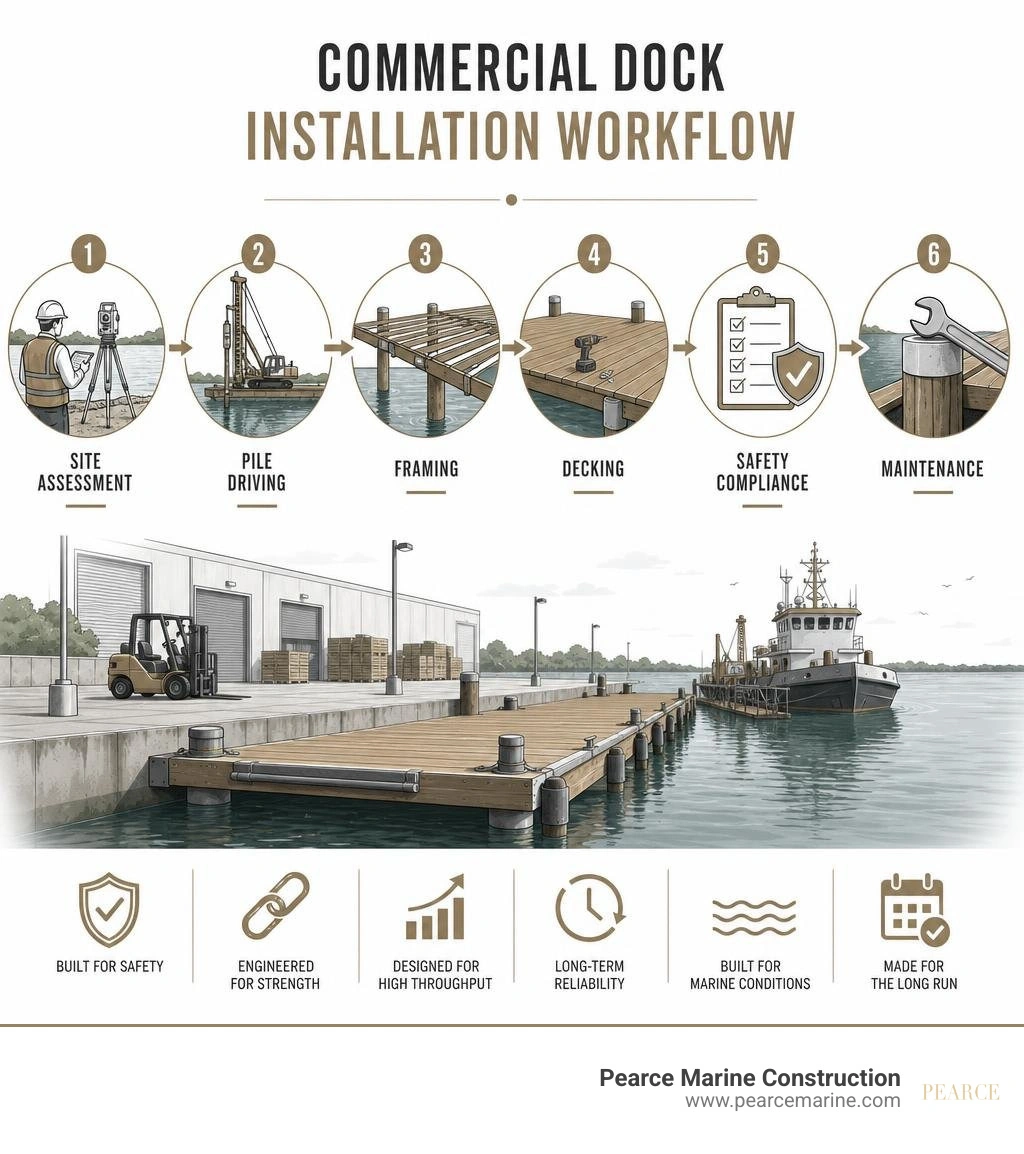

Here is an overview of our commercial dock installation process:
| Key Element | What It Involves |
|---|---|
| Site Assessment | Evaluating soil density, tidal depth, and shoreline conditions |
| Foundation System | Steel or timber pile driving to anchor the structure |
| Structural Framing | Heavy-duty timber or composite deck framing for load capacity |
| Dock Type | Fixed piling pier or floating dock based on tidal variance |
| Safety Standards | OSHA and ANSI compliance for commercial use |
| Ongoing Maintenance | Periodic structural inspections and piling reinforcement |
A well-built commercial dock is the backbone of your waterfront operation. Proper marine engineering prevents costly operational downtime, structural fatigue, and safety risks.
For commercial property owners on Long Island — from the working waterfronts of West Islip to the harbors of Southampton — tidal fluctuations, saltwater exposure, and heavy vessel loads demand a structure engineered from the ground up for maximum load capacity and longevity.
Related commercial marine construction services:
Essential Engineering Practices for Commercial Dock Installation
When we tackle a heavy-duty project, we know that proper engineering makes all the difference between a pier that lasts fifty years and one that fails during its first winter storm. Robust Commercial Dock Construction relies on calculating point loads, dynamic forces, and structural impact resistances long before heavy machinery ever arrives on-site.
Commercial docks endure intense operational demands. Heavy cargo transfer, multi-ton vessel impact during berthing, and continuous wave action mean every structural connection must be oversized and engineered to precision. Unlike simple residential piers, commercial waterfront installations demand structural framing, specialized deep foundation pilings, and heavy equipment staging that can support high-capacity operations without structural deflection or fatigue.
Site Assessment and Pile Driving for Commercial Dock Installation
Every successful installation begins deep beneath the water line. A comprehensive geotechnical site assessment allows us to analyze underwater soil density, sediment depth, and bedrock layers along Nassau County shorelines and Suffolk County waterfronts. Whether working in the deep waters of Cold Spring Harbor or the sandy bottom conditions of Babylon and Massapequa, determining precise soil mechanics dictates our piling depth calculations.
Pile driving serves as the primary anchor for any commercial waterfront structure. Deep vertical pilings transfer structural dead loads and live operational loads down to stable sub-soil layers. Depending on salinity levels, depth, and structural requirements, we utilize:
- Heavy Marine Timber Pilings: Treated with specialized marine-grade preservatives to resist marine borers and rot in brackish or saltwater environments like Merrick and Wantagh.
- Structural Steel Pipe Pilings: Driven to extreme depths when high load-bearing capacity and deep water berthing are required, particularly for facilities in Bayshore or Huntington.
Working as an experienced commercial dock builder, our pile driving process utilizes vibratory and impact hammers to achieve verified load capacities. Driving pilings to full structural refusal ensures your pier remains rock-solid, even under continuous heavy usage.
Structural Framing and Decking Options for Commercial Dock Installation
Once the foundation pilings are set and cut to elevation, structural framing begins. Following our detailed Dock Installation Complete Guide, we build heavy-duty timber or structural steel frameworks designed to tie pilings together into a single rigid unit. Heavy cross-bracing and oversized walers distribute localized impact forces across the entire foundation grid.
Selecting the right commercial decking material is essential for longevity and safety in corrosive marine environments:
- Heavy Structural Timber: Traditional pressure-treated southern yellow pine or dense tropical hardwoods offer immense impact strength and natural friction underfoot.
- Composite Decking: Premium synthetic marine materials resist rot, splintering, moisture absorption, and UV fading while retaining high structural integrity under continuous commercial foot and cart traffic.
- Fiberglass & Metal Grating: Open-grid synthetic panels allow sunlight and water to pass directly through, reducing hydrodynamic uplift forces from storm surges along coastal sites like Westhampton and West Islip.
Properly securing framing and decking with marine-grade stainless steel or hot-dipped galvanized hardware protects against rapid saltwater corrosion, keeping the entire assembly structurally sound.
Operational Safety and Compliance Standards
Commercial waterfront facilities must adhere to strict regulatory guidelines to protect workers and vessel operators. As an experienced Marine Construction Contractor, we incorporate applicable OSHA maritime safety standards and ANSI standards directly into our structural designs.
Key safety features integrated during installation include:
- Heavy-Duty Tie-Down Cleats and Bollards: Anchored directly into the structural framework with through-bolts rather than top decking to withstand sudden line strain from heavy vessels.
- Commercial Dock Bumpers and Fendering Systems: Heavy rubber extrusions, steel-backed bumpers, and sacrificial timber rubbing strips mounted to exterior pilings absorb vessel berthing impacts and prevent dock damage.
- Engineered Load Limits: Clear structural capacity ratings designed into the frame to handle heavy mobile equipment, forklift staging, and concentrated freight transfers.
- Perimeter Guardrails and Lighting Access Points: Integrated structural mounts for safety railings, perimeter curbing, and heavy utility conduits.

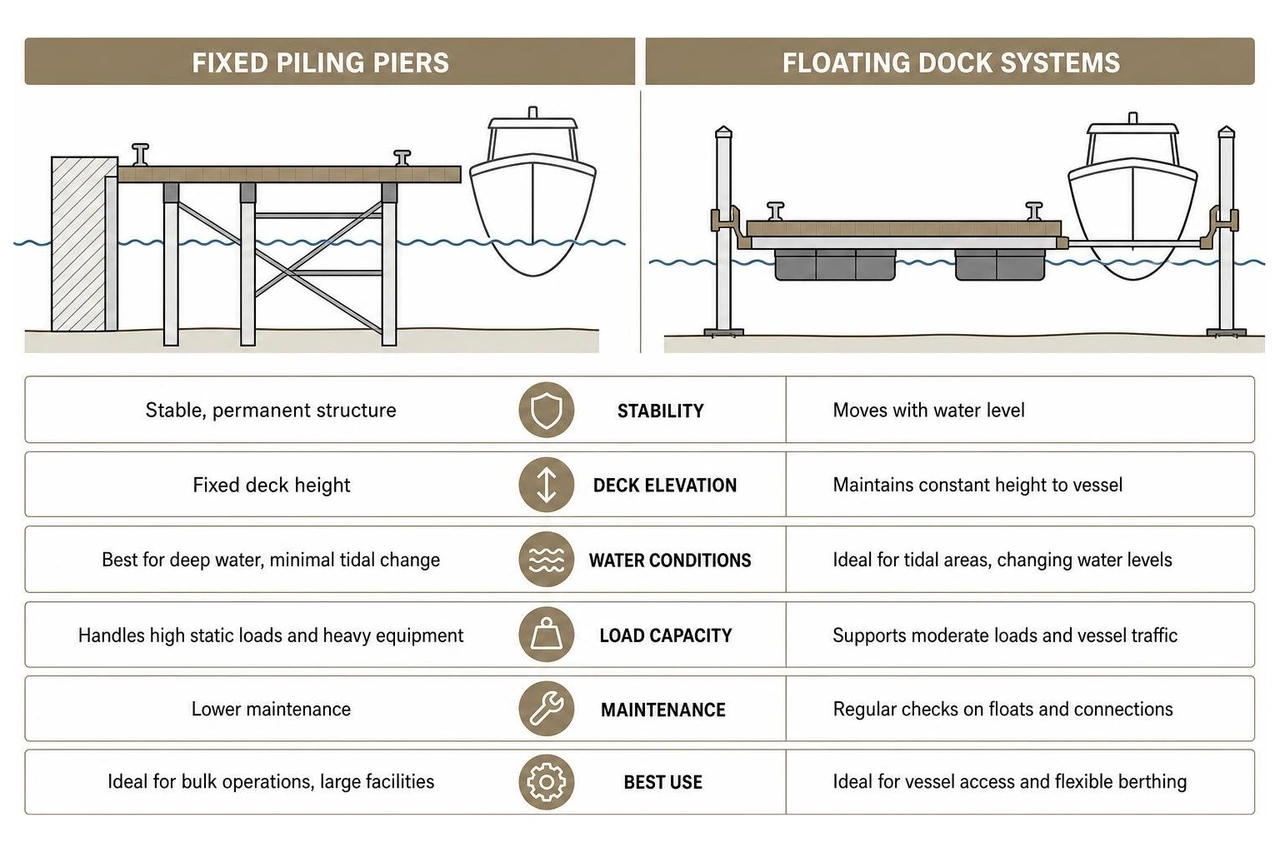

Selecting Floating vs. Fixed Systems for Maximum Throughput
Choosing between a fixed piling pier and a commercial floating dock depends largely on local tidal fluctuations and operational throughput demands.
- Fixed Piling Piers: Ideal for deep-water locations with stable deck height requirements. Fixed piers handle massive static weight loads and heavy material transfer without movement. They excel in facilities across South Hampton and Lloyd Harbor where fixed elevation matching high dock walls or shorelines is preferred.
- Floating Dock Systems: Essential in tidal zones across Bellmore and Brightwaters where water depth varies significantly throughout the day. Floating systems ride on heavy-duty guide pilings or anchoring tracks, keeping the dock deck at a constant height relative to the vessel's gunwale. This seamless vessel-to-dock transition speeds up cargo movement and simplifies berthing.
By reviewing your site's wave action, vessel types, and operational requirements, we help select or combine these systems through our specialized Boat Docks and Floating Docks Services. Operational facilities across eastern Long Island carefully evaluate structural framing and pile design to understand how specialized systems handle severe coastal weather dynamics.
Long Island Marine Dock Maintenance and Construction
Building a commercial waterfront structure on Long Island requires a contractor who understands local environmental conditions, shifting shorelines, and heavy marine engineering. When property owners compare regional Dock Building Companies, our reputation stands out. Unlike generalized contractors, we bring generational expertise, woman-owned precision, and deep familiarity with Nassau and Suffolk County marine environments.
After installation, maintaining maximum structural throughput requires a dedicated preventative maintenance routine:
- Annual Piling Inspections: Checking timber pilings for marine borer damage or ice abrasion, and verifying steel pilings for wall thickness and corrosion.
- Structural Connection Checks: Inspecting through-bolts, piling caps, and heavy cross-bracing for signs of mechanical fatigue or loosening caused by continuous wave action.
- Piling Reinforcement & Wrapping: Installing protective PVC wraps or concrete piling jackets around timber supports in high-salinity zones to extend foundational lifespan.
- Decking & Fendering Servicing: Replacing worn dock bumpers, rubber fenders, and damaged decking boards before minor wear leads to operational downtime.
From commercial facilities in Southampton and Westhampton to busy waterfront yards in Brightwaters, West Islip, and Massapequa, our team delivers uncompromised marine construction craftsmanship.
Ready to construct a high-throughput commercial dock engineered specifically for your site? Partner with Pearce Marine Construction today to discuss your commercial project with Long Island's premier marine structural specialists.
