How to Fill the Voids and Save Your Shoreline

When the Ground Behind Your Seawall Starts to Disappear

Seawall erosion repair is the professional process Pearce Marine Construction uses to stabilize and restore coastal wall structures by filling voids, stopping soil loss, and reinforcing the foundation — without necessarily tearing out and rebuilding the entire wall.

Here's a breakdown of our professional approach:

1. Professional Identification — Our team identifies sinking ground, cracks, rust stains, or water bubbling up behind the wall
2. Expert Diagnosis — We determine the root cause, such as subsurface soil loss, hydrostatic pressure, or structural movement
3. Engineering the Solution — We select the optimal repair method, including polyurethane injection, helical piles, tiebacks, or drainage improvements
4. Professional Restoration — We seal voids, stabilize soil, and relieve pressure to stop ongoing damage

Most seawall damage doesn't start at the surface. It starts below it.

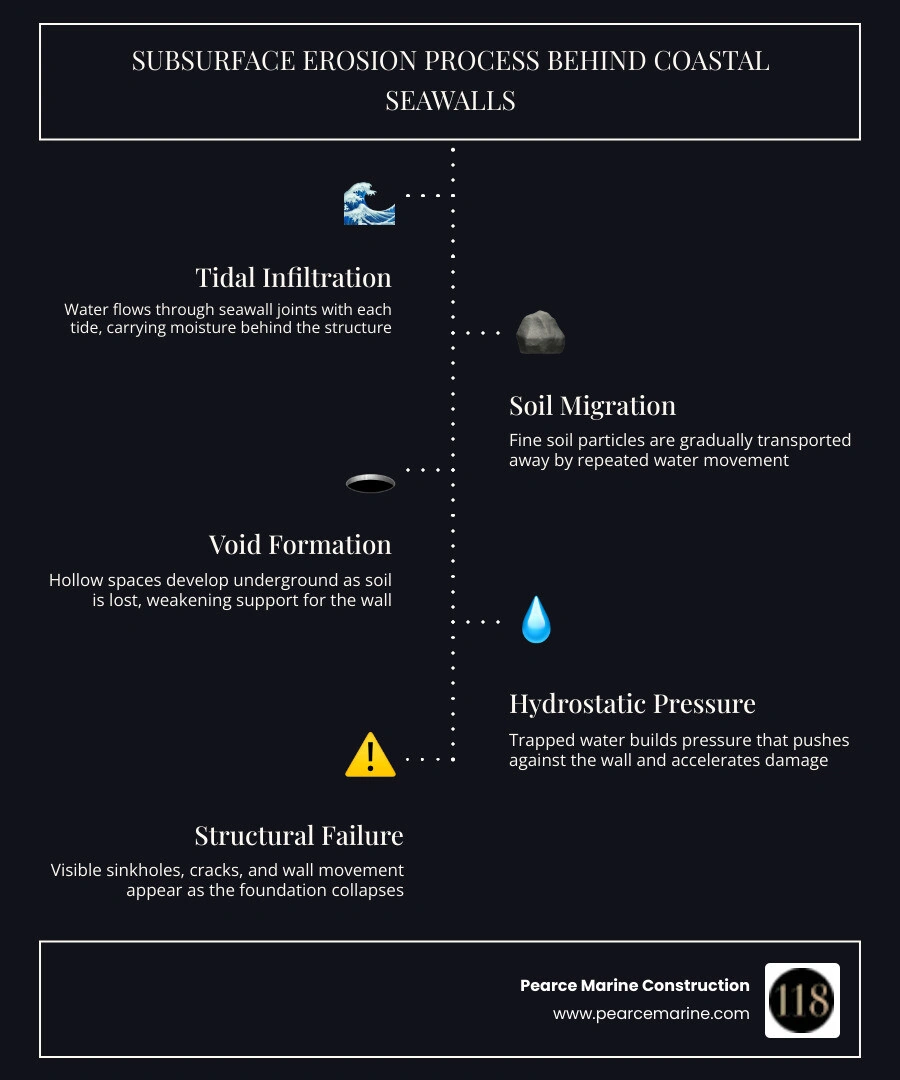

Water moves through and behind your wall with every tidal cycle. Over time, it carries soil particles with it — slowly hollowing out the ground that holds your wall in place. By the time you notice a sinkhole, a crack, or a section of your yard sinking toward the water, the problem has usually been building for months or years.

This is especially true on Long Island, where properties in Nassau and Suffolk Counties face a relentless combination of tidal fluctuations, storm surges, saltwater corrosion, and freeze-thaw cycles. These forces don't stop — and neither does the erosion they cause.

The good news: Pearce Marine Construction can often save your existing structure without a full replacement. When the main structure is still sound, our targeted repairs can stop the soil loss, fill the voids, and extend your seawall's life by decades — at a fraction of the cost of full replacement.

Choosing the wrong repair method — or patching the surface while ignoring what's happening underground — can actually make things worse. Sealing a wall without addressing drainage or foundation issues traps water, increases pressure, and accelerates failure. This overview details the professional engineering and repair methods Pearce Marine Construction utilizes to restore structural integrity.

Advanced Techniques for Seawall Erosion Repair

Pearce Marine Construction utilizes advanced, non-disruptive techniques that address bulkhead failure from the inside out. In the past, the standard response to a failing bulkhead was excavation—a messy, expensive process that involved digging up the yard to reach the back of the wall.

Our modern seawall erosion repair services focus on two primary goals: filling the empty spaces (voids) created by escaping soil and strengthening the remaining soil mass. By using specialized chemical grouting and high-density polymers, we stabilize the ground without the need for heavy machinery that tears up your landscape.

For property owners in Nassau County, these methods are often the difference between a three-day repair and a three-week construction project. You can explore more about these options in our Seawall Repair Services Ultimate Guide or check out the Seawall Repair Guide 2026 for the latest industry standards. For those specifically in the Long Island area, Sea Wall Repair | Nassau County - Concrete Lifting provides additional local context on how these technologies are applied to our unique geography.

Identifying Voids and Seawall Erosion Repair Indicators

Professional diagnostic assessments are the best defense against total wall failure. In waterfront communities like Southampton and West Islip, our team identifies subtle signs of erosion before they become catastrophic.

Our inspectors look for these critical red flags:

• Sinkholes and Depressions: If you notice "potholes" or dipping ground within 10 feet of your seawall, soil is likely washing out through gaps in the panels or under the toe of the wall.
• Rust Stains: On concrete walls, orange streaks indicate that saltwater has reached the internal rebar. This causes the metal to expand and crack the concrete from the inside.
• Panel Movement: If the wall looks like it is "kicking out" at the bottom or leaning toward the water, the structural integrity is compromised.
• Water Bubbling: During a heavy rain or high tide, look for water bubbling up from the ground behind the wall, which indicates a failure in the drainage or joint sealing.

If you spot these issues, scheduling Seawall Inspection Services is the first step. Catching a small crack now allows for simple Seawall Crack Repair before it turns into a major structural headache.

Polyurethane Injection and Chemical Grouting

One of the most effective ways we stop erosion is through polyurethane injection. This process involves drilling small, 5/8-inch holes into the ground or through the seawall cap and injecting a high-density, closed-cell foam.

As the foam enters the soil, it expands to fill every nook and cranny, reacting with the moisture in the ground to create a rock-hard, water-impermeable mass. This not only fills existing voids but also seals the joints and cracks where soil was previously escaping. This method is incredibly popular in areas like Merrick and Wantagh because it is non-invasive and can be completed in just a few days.

According to How to Prevent Erosion Behind Seawalls | Expert Tips - Helicon, using these targeted grouts can effectively "glue" the soil together, creating a secondary barrier behind the wall. For a deeper dive into how we apply these foams, see our page on Seawall Repair Services.

Structural Stabilization with Helical Piles and Tiebacks

Sometimes, the issue isn't just missing soil; it's a lack of structural support. If the soil behind your wall is too soft or has been too heavily eroded, we use helical piles and tiebacks to anchor the wall into stable, load-bearing earth.

Helical piles are essentially large steel screws that are driven deep into the ground until they hit a specific torque measurement, indicating they have reached solid soil. These piles provide vertical support, while tiebacks—horizontal rods anchored far back into the yard—provide lateral resistance to keep the wall from leaning or "bowing" under the weight of wet soil.

As noted in Seawall Erosion Repair: Helical Piles for Long-Term Stabilization, this approach is essential when the "active" zone of the soil is no longer capable of holding the wall's weight. When you hire Seawall Repair Contractors, ensure they have the equipment to measure torque and verify the capacity of these anchors during installation.

Long-Term Maintenance and Cost-Effective Restoration

Investing in professional seawall erosion repair with Pearce Marine Construction protects your property's future. On Long Island, where waterfront real estate values are high, maintaining the structural integrity of your shoreline is non-negotiable.

The cost of seawall erosion repair typically ranges from $150 to $400 per linear foot. Compare that to a full replacement, which can easily exceed $1,000 per linear foot in some areas of Suffolk County. By choosing repair, you are often saving 60% to 80% of the cost of a new build while still gaining 10 to 20 years of life for your structure.

For a more detailed breakdown of these numbers, visit our Seawall Building Cost Complete Guide or our Seawall vs Bulkhead Guide 2025.

Implementing Drainage Solutions for Seawall Erosion Repair

Hydrostatic pressure is the #1 killer of seawalls on Long Island. This occurs when water gets trapped behind the wall (from rain or receding tides) and can’t escape fast enough. The weight of that trapped water pushes against the wall with thousands of pounds of force.

To mitigate this, Pearce Marine Construction installs engineered drainage systems:

• Weep Holes: Small openings that allow water to drain out.
• Jet Filters: Specialized one-way valves that let water out but keep soil in.
• French Drains: A gravel-filled trench system that directs water toward the weep holes.

Proper drainage is the secret to a long-lasting repair. Without it, even the strongest wall will eventually succumb to the pressure. You can learn more about the specific components we use in our Seawall Construction Materials Guide.

When to Choose Repair Over Full Replacement

We always aim to save your existing wall, but we also have to be honest about its condition. Repair is a great option if:

• The wall is less than 30 years old.
• The damage is localized (a few sinkholes or cracks).
• The wall is still vertically straight.

However, full replacement becomes necessary if there is significant "toe scour" (the bottom of the wall has been undermined), if timber piles are completely rotted through, or if vinyl panels have shattered. If you find yourself in this position, our Seawall Construction Ultimate Guide can help you plan for a new, more durable structure.

Professional Shoreline Protection in Nassau and Suffolk County

At Pearce Marine Construction, we understand the unique challenges of the Long Island shoreline. Whether you are dealing with the calm canals of Massapequa and Babylon or the more exposed waters of Southampton and West Hampton, we bring generational expertise to every project.

As a woman-owned business, we pride ourselves on meticulous craftsmanship and transparent communication. We don't just patch cracks; we engineer solutions that protect your property for the long haul.

If you are seeing signs of soil loss or wall movement, don't wait for the next big storm. We offer expert Seawall Construction in Nassau and Seawall Construction in Suffolk to ensure your shoreline stays exactly where it belongs.

Ready to secure your property?Request a professional evaluation for seawall erosion repair today and let us help you save your shoreline.
